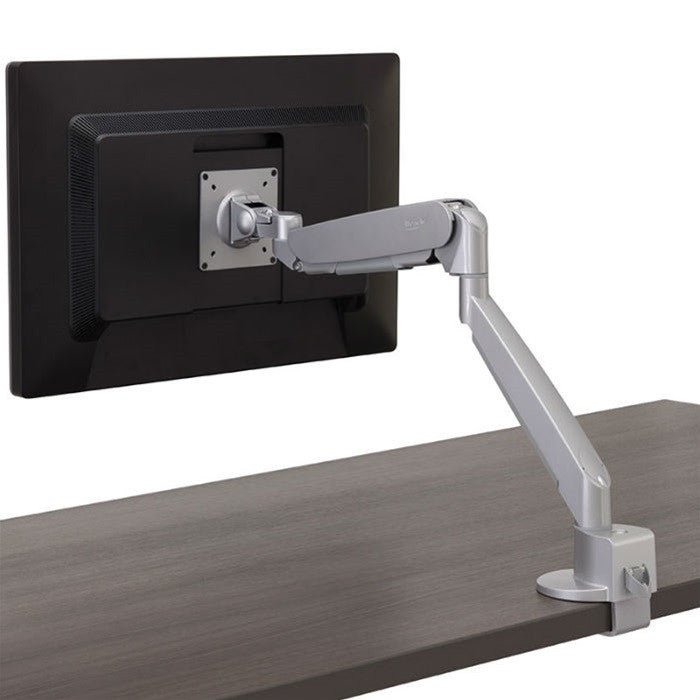

Workrite Conform Heavy-Duty Articulating Monitor Arm

  • $202.80
  • Ships within 3-5 business days


  • The Conform Heavy-Duty Articulating Monitor Arm is engineered to support heavier all-in-one computer monitors and VESA mounted CPU/monitor combinations, the Conform Heavy Duty lifts up to 40 lbs with ease. Utilizing the same pin assembly system as the Conform Single Articulating Arm, the Conform Heavy Duty can be used with any Conform Base or configured to work side by side any other Conform Monitor Arm.

    Benefits:
    • Smooth lifting, maintenance-free gas spring supports one 17-40 lb. monitor
    • Adjust to the perfect height, with 14 inches of vertical movement
    • Extends to 22.5 inches of forward reach, for easy monitor viewing
    • Quickly folds down to 5.25 inches, freeing up user workspace
    • Easily route and conceal cables through the integrated wire managers
    • Interchangeable pin system ensures future adaptability
    • Discrete silver color blends into office environments
    • Designed for fast and easy installation
    Specifications:
    • 135° tilt range (90° / - 45°)
    • Pivot: +/-90deg;, Rotation: +/-90deg;
    • Forward reach: 22.5″
    • Articulation range: 13″
    • Maximum monitor height: 16″ (full range of motion)
    • Stowed depth: 5.25″
    • Supports one 17-40 lb. monitor
    • Available in Silver
    • Integral cable management neatly stores cables
    • VESA 75mm and 100mm compliant

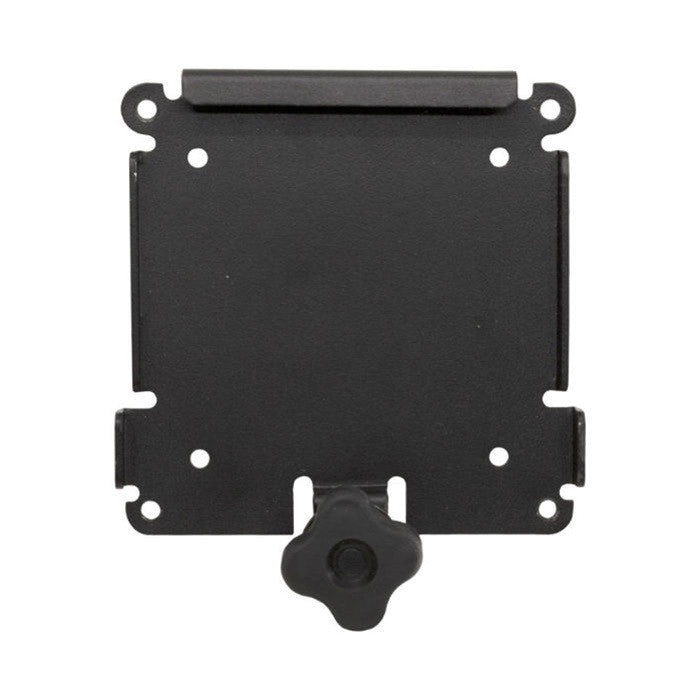

    • Optional 100mm x 100mm VESA Adaptor available
    • Optional Quick Release VESA Adaptor available
    • 10 year warranty

    Mounts:

    • C-Clamp & Grommet
    Convenient top adjusting C-clamp design
    Includes both c-clamp & grommet mounting options
    180° pivot limiter on lower arm for space constrained environments
    Supports up to 48 lb.


    • Tool Bar & Slatwall
    Easily mount to Tool Bars, Privacy Panels & Slatwalls
    Clamping design supports slat rails up to 1.25" wide
    Supports up to 48 lb.


    • Wall Plate
    Wall mount to concrete, steel or drywall
    (Mounting hardware not included; drywall installation requires screw to stud contact)
    Supports up to 48 lb



    • 14" Pole w/ Pole Adaptor (Add $63.00)
    Includes both c-clamp & grommet mounting options
    Convenient top adjustment C-clamp design
    Supports up to 48 lb.
    Pole Mount/Addaptor Installation Guide


    • Knoll® Antenna® Adaptor (Add $24.00)
    Compatible with Knoll Antenna- Table Center Beam Center Mount & Antenna Table Center Beam Side Mount
    Supports up to 48 lb.*
    * Knoll Antenna capacity dependent
    Knoll Antenna Installation Guide
