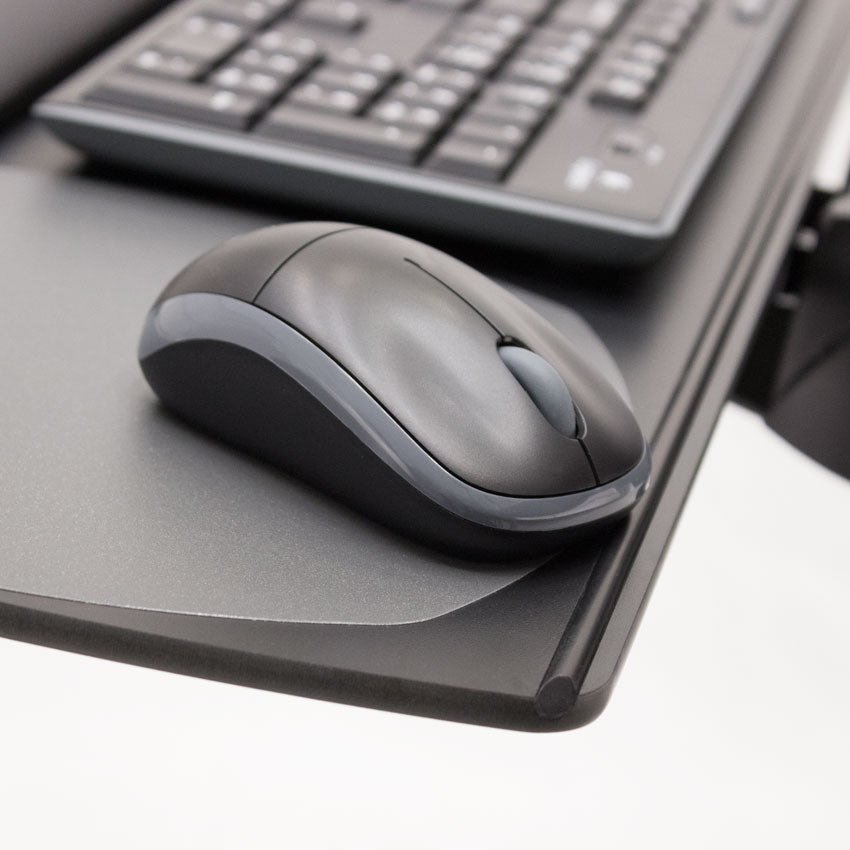

Designed for limited depth, straight worksurfaces and shallow keyboards that are less than 6" deep. The compact design makes 90% platform storage possible on a 17" track, in installations such as benching situations or shallow top, and full storage on a 22" track.

The removable palm support adjusts easily from side to side to accommodate both right or left mouse use. Includes our Pinnacle 2 Value adjustable keyboard arm with nylon glide track. Ultra-thin phenolic material backed by our lifetime warranty provides years of dependable quality and performance

Keyboard & Mouse Platform:

• Sized for compact keyboards less than 6" deep
• UltraThin™ .25" solid phenolic construction
• Includes palm support
• Right/Left reversible
• Available in black
• Optional clip on mouse palm support available



Keyboard Arm:

• Includes 3175 Pinnacle 2 Value keyboard arm mechanism
• Adjusts from 1" above to 5" below track
• No knob/no lever Lift-n-Lock height adjustment
• 25° tilt range: -15° +10°
• Smooth nylon glide track
• 360° arm swivel at track
• Meets ANSI/BIFMA X5.5 standards
• Fully stores on 22" track
• Exceeds front of track 1.5" on 17" track

Front Swivel Plate Allows keyboard and mouse platform to pivot an extra 45° left or right for special mounting requirements. Easy to Install: Mounts between the arm and keyboard platform.
