Intellaspace SlimForm 19" Keyboard Tray System

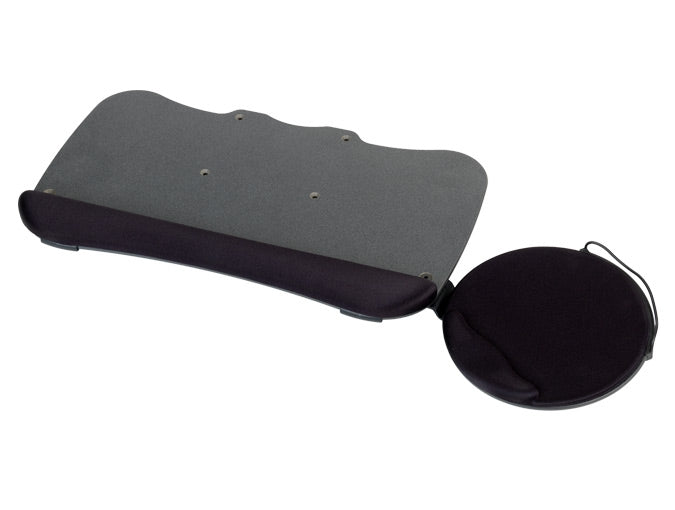

SlimForm 19" Wide Keyboard Platform

• 1/4" thin phenolic allows complete knee clearance
• Tilt & Swivel mouse with Gel pad provides infinite adjustment
• Gel palm rest (removable) for maximum ergonomic comfort
• Adjustable mouse catcher with cord manager
• Mouse platform mounts right or left
• Tray dimensions 19-1/2" x 11-1/2", plus 8-1/4" diameter mouse

Arm Options

1) EasyRiser

EasyRiser - Knob-free 6.25" height adjustment (1.25" above / 5" below) and precise positioning of keyboard height and tilt. Platform fully retracts underneath mounting surface on its 23" track. For corner or straight installations.

Stubby EasyRiser - Knob-free 5" height adjustment (1" above / 4" below), platform fully retracts on its 17.75" track (not suitable for corner installations).

Super Stubby EasyRiser - Knob-free 6" height adjustment (2.5" up / 3.5" down), platform fully retracts on its 14.75" track (not suitable for corner installations)

EasyRiser Advantages:

• Independent tilt adjustment (15°)
• Slim profile for maximum knee clearance
• Counterbalanced design for effortless keyboard tray height adjustment
• 360° rear swivel for optimal keyboard tray positioning and easy stowage
• Extended arm design fits various workstation configurations
• Installation hardware and instructions included
• Exceeds ANSI/BIFMA X5.5, 1998 performance standards
• Lifetime warranty

2) Houdini

Houdini Full-Range Arm - Works like an extended arm mechanism but stores away like a short arm 8" height range and 30° tilt range. For corner or straight installations (17.75" track)

Houdini Advantages:

• Total travel range of 8" (3" above, 5" below)
• Independent tilt adjustment (+20°,-10°)
• Slim profile allows for maximum knee space, either in use or retracted
• Counterbalanced design for effortless keyboard tray height adjustment
• 360° rear swivel for optimal keyboard tray positioning and easy stowage
• Fits various workstation configurations, including corner desks
• Closed-channel design provides maximum keyboard tray stability
• Exceeds ANSI/BIFMA X5.5, 1998 performance standards
• Lifetime warranty

3) Cobra Sit-Stand

Cobra Sit-Stand - The highly styled Cobra Sit-Stand puts the keyboard tray and mouse in perfect user position whether sitting or standing. Extensive ergonomic research has shown that the ability to move quickly from a seated to a standing position significantly reduces fatigue.
Cobra Sit-Stand Advantages

• Total travel range of 12.5" (from 7" above to 5.5" below track).
• Wide range of user mobility - full 20° of negative tilt and 10° of positive tilt.
• 360° rear swivel for optimal keyboard tray positioning and easy stowage.
• Slim profile allows for maximum knee clearance when in use or retracted.
• Closed-channel design provides maximum keyboard stability
• Exceeds the ANSI/BIFMA X5.5, 1998 industry performance standard
• Lifetime warranty
• Fully retracts on 23" track only

4) Tilt-A-Wheel Cobra Sit-Stand

The Tilt-A-Wheel Cobra Sit-Stand offers all of the advantages of the standard Cobra Sit-Stand plus convenient, one-hand tilt adjustment by rotating the soft touch wheel. * Fully retracts on 23" track only

5) Ovation

Ovation Lift-N-Lock™ Arm - Smooth operation is the corner stone of Ovation's Lift-N-Lock™ height adjustment. Easy to use rotating dial knob allows precise angle adjustment.

Ovation Advantages:

• Height Adjustment Range: 7.25" (2.25" above to 5" below)
• Tilt Adjustment: Rotating Dial Knob (+10°,-15°)
• Slim profile allows for maximum knee space, either in use or retracted
• Counterbalanced design for effortless keyboard tray height adjustment
• 360° rear swivel for optimal keyboard tray positioning and easy stowage
• Closed-channel design provides maximum keyboard tray stability
• Exceeds ANSI/BIFMA X5.5, 1998 performance standards
• Fully retracts on 21" track only
• Lifetime warranty

6) Ovation Extended

Ovation Lift-N-Lock™ Arm - Smooth operation. Easy to use rotating dial knob allows precise angle adjustment. For corner applications.

Ovation Extended Advantages:

• Height Adjustment Range: 8.5" (3" above to 5.5" below)
• Tilt Adjustment: Rotating Dial Knob (+10°,-15°)
• Slim profile allows for maximum knee space, either in use or retracted
• Counterbalanced design for effortless keyboard tray height adjustment
• 360° rear swivel for optimal keyboard tray positioning and easy stowage
• Closed-channel design provides maximum keyboard tray stability
• Exceeds ANSI/BIFMA X5.5, 1998 performance standards
• Fully retracts on 23" track only
• Lifetime warranty

CornerShaper Options

The CornerShaper turns vacant right angles into useful workspaces. Front of rack mount installs directly into CornerShaper.

Front Swivel Bracket

The optional front swivel bracket mounts to the keyboard arm (in between the arm and the keyboard platform) to allow for dual swivel functionality. The keyboard platform will rotate 45° left or right while the arm remains stationary. You may also move the platform laterally 9" left or right by swiveling the arm and the platform in unison.
