ESI Ergonomics

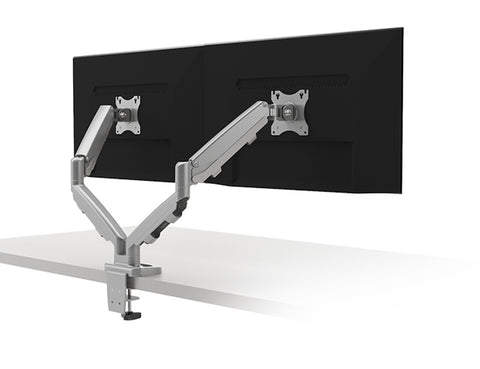

Kata EX Dual Monitor Arm Series

Kata EX Dual Monitor Arm Series

Regular price $493.80
Regular price Sale price $493.80
Sale Sold out
Ships within 1-3 business days

Customizations Total: $0.00

The ESI KataEX Series feature height adjustment arms mounted along a pole to allow vertical height adjustment. Some configurations have additional finger touch dynamic height adjustment features. KataEX accommodates varying workstations by retracting and extending, and offers a comfortable viewing distance no matter the size of the workstation. If desired, a 180° lockout prevents the arm from retracting past the back edge of the worksurface. A tension adjustment gauge on the back of the arm allows users to view the tension levels while adjusting the arm for various monitor weights. The KataEX VESA mount is capable of swiveling ±90° between portrait and landscape orientation, while also being able to tilt monitors backward and forward. Position virtually any monitor arm side-by-side with a slider. The slider offers 9.5 inches of horizontal adjustability, so even monitors of varying sizes can be positioned flush.

Available in silver, white or black.



Features:

  • +90°/-45° monitor tilt
  • ±90° VESA rotation
  • 16 inch pole height
  • VESA 75mm/100mm quick release
  • 180° lock-out feature
  • Includes mount (grommet or a desk clamp)
  • Tension adjustment indicator for precision installation
  • Partially assembled for quick installation
  • Integrated cord management
  • Integrated tool holder
  • Exceeds ANSI/BIFMA x5.5 requirements
  • 32 inch max. monitor width Bezel measured left to right, Max width is contingent on weight capacity
  • 15 year warranty

Available Models:

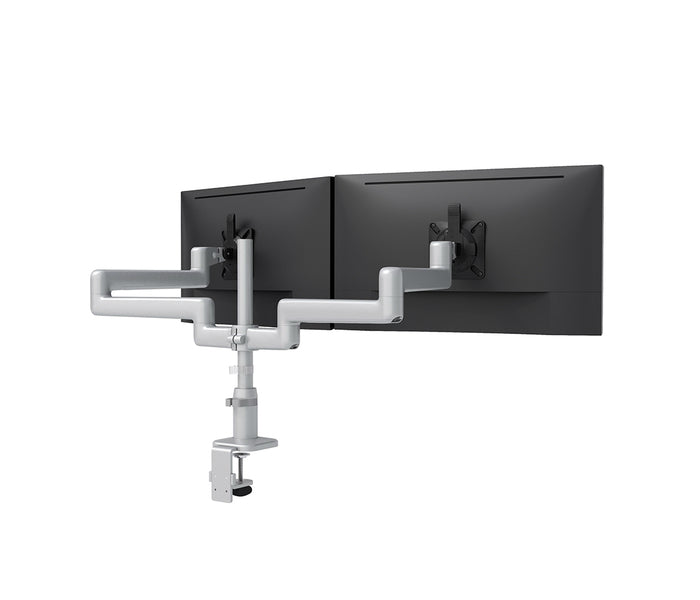

Base FF Model -

  • One fixed height arm stem and two fixed height arm links per monitor (see image below).
  • Manual height adjustment along 16" pole
  • 24.8" horizontal extension; retracts to 4.5"
  • 20 lbs per monitor max weight capacity

KATAEX2-FF Brochure

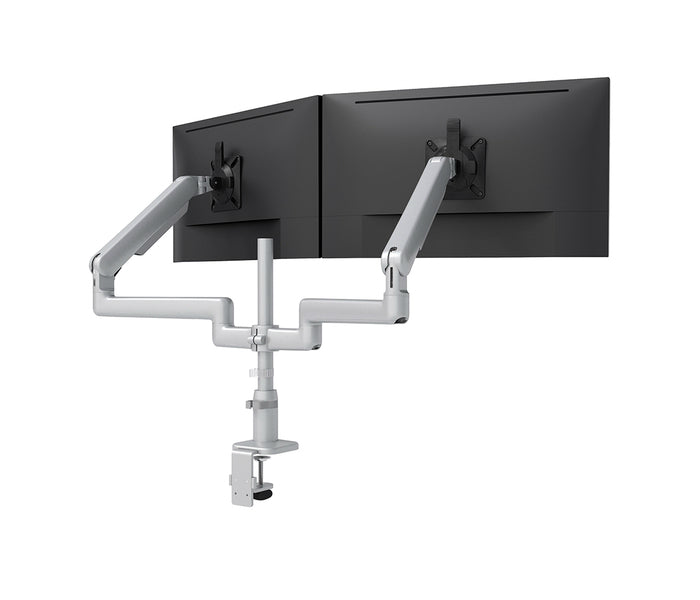

FM Model -

  • One fixed height arm stem, one fixed height arm link and one motion arm link per monitor (see image below).
  • Finger touch 14" Dynamic height adjustment, additional manual height adjustment along 16" pole
  • 23.9" horizontal extension; retracts to 3.0"
  • 20 lbs per monitor max weight capacity

KATAEX2-FM Brochure

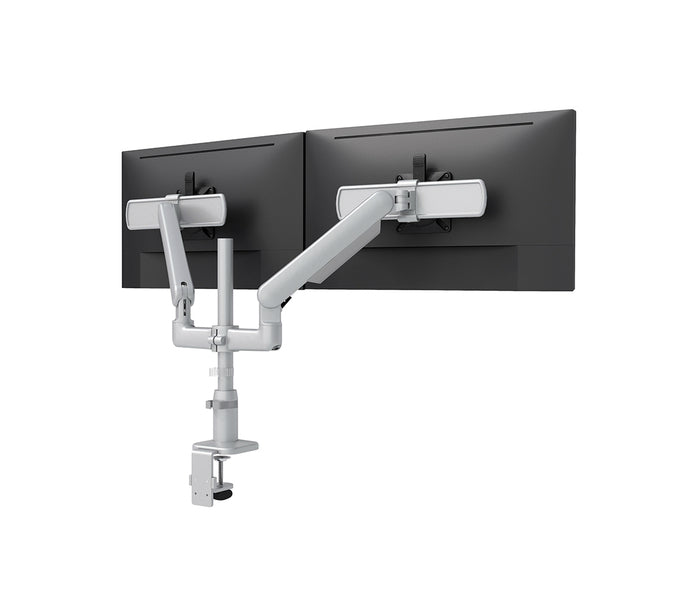

MS Model -

  • One fixed height arm stem, one dynamic motion arm link and one slider
    per monitor (see image below).
  • Finger touch 14" Dynamic height adjustment, additional manual height adjustment along 16" pole
  • 14.7" horizontal extension; retracts to 4.0"
  • 18.5 lbs per monitor max weight capacity
  • Extra 9.5" side to side range using sliders

KATAEX2-MS Brochure

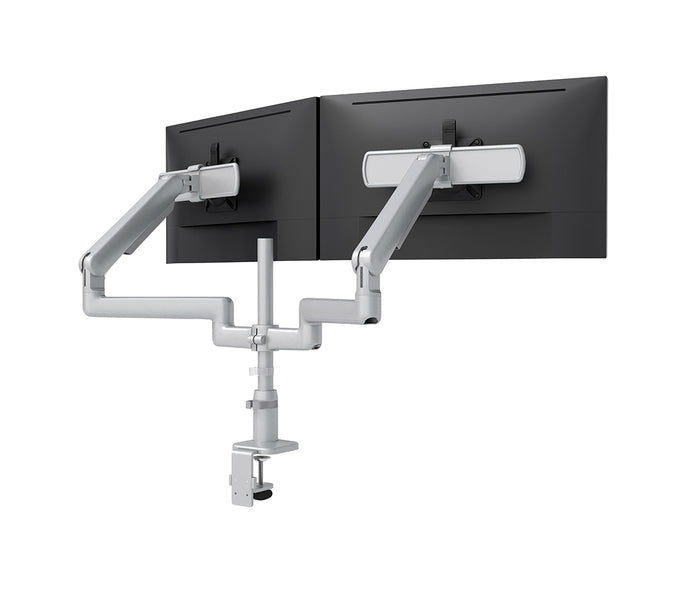

FMS Model -

  • One fixed height arm stem, 1 fixed height arm link, 1 motion arm link
    and 1 slider per monitor (see image below).
  • Finger touch 14" Dynamic height adjustment, additional manual height adjustment along 16" pole
  • 24.9" horizontal extension; retracts to 4.0"
  • 18.5 lbs per monitor max weight capacity
  • Extra 9.5" side to side range using sliders

KATAEX2-FMS Brochure

    Design Story:

    Envisioning a distinctive monitor arm with enhanced ease of use, ESI partnered with design firm Roger Webb Associates. Known for strategies that reshape and transform product portfolios, Roger Webb’s insight was essential to the Kata. The first step on the path to a remarkable new design.

    The design was carefully tested so that it could accommodate a variety of monitor weights and sizes without compromising ease of movement. The access points were attuned to the sensitivity of touch screens so that the arm could easily function with any type of user engagement. The Kata arm could now adapt to any customized workstation with single or dual monitor configurations. The result is a monitor arm elegantly refined with instinctive access points that pivot responsively and precisely to touch. The Kata’s versatility and ease of adjustment bring dynamic design performance to any workspace.

    The design team stripped away unnecessary attributes from the typical monitor arm. Working with wooden prototypes, they continuously reduced the clutter to get to the bare essence of what made an arm flex dynamically while also providing stability once a position was set. These refinements achieved an ideal balance between flow and support. Distinctive in appearance, the scaled down design emphasized the key pivot points, making adjustment intuitive and effortless.

    The team fine-tuned these five points of movement. The streamlined design allowed the fully functional key points of contact to be further enhanced so users could smoothly and accurately adjust height and reach with fingertip sensitivity allowing for the most precise positioning with the least effort.

    Mfr Part #'s:

    Fixed Arm + Fixed Arm - KATAEX2-FF

    Fixed Arm + Motion Arm - KATAEX2-FM

    Motion Arm + Slider - KATAEX2-MS

    Fixed Arm + Motion Arm + Slider - KATAEX2-FMS
