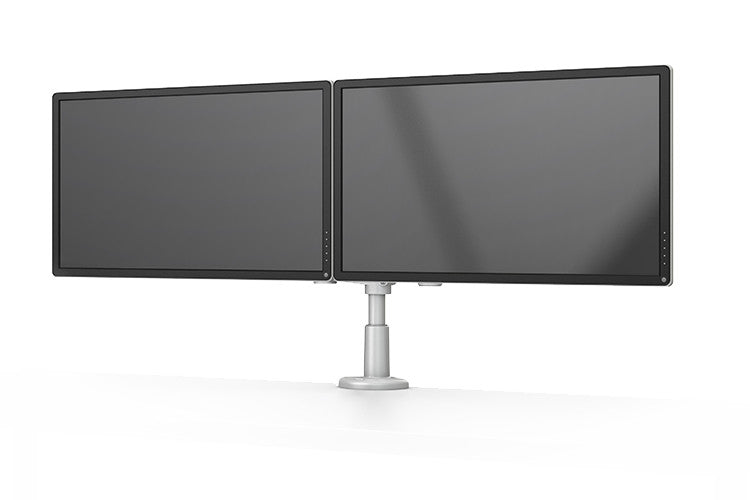

Evolve Pole-Mounted Dual Monitor Arm Series

The Evolve Pole-Mounted Dual Monitor Arms provide extremely versatile adjustability in a sleek and slim package. Featuring quick and secure height adjustment along the length of the pole as well as a variety of fixed arm, motion arm and slider arm configurations that adjust up and down. Slider allows for easy side-by-side alignment of varying sized monitors. Available in silver, white or black.

Evolve Pole-Mounted Dual Monitor Arms present a slim profile when in the folded position, making this monitor arm a perfect match for users with limited available work surface depth. Cables can be routed inside internal pathways along the underside of the arm for a clutter-free work area. Gas spring technology provides smooth height adjustability.

16" Pole standard, 28" Pole available with FM model.

Available Models:

Base FF Model -

• One fixed height arm stem and two fixed height arm links per monitor (see image below).
• Manual height adjustment: 13.5" - 25.25"
• 26.75" horizontal extension, +25°/-90° tilt, +90°/-90&deg rotation
• 27" max monitor width, 20 lbs max monitor weight per arm

FS Model -

• One fixed height arm stem, one fixed height arm link and one slider
  per monitor (see image below).
• Manual height adjustment: 12" - 23.25"
• 16.25" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
• 27" max monitor width, 20 lbs max monitor weight per arm

FM Model -

• One fixed height arm stem, one fixed height arm link and one dynamic motion arm link per monitor (see image below).
• Manual and Dynamic height adjustment: 4.5" - 26.5"
• Optional 28" pole for 38" height adjustment available
• 26.75" horizontal extension, +25°/-90° tilt, +90°/-90&deg rotation
• 27" max monitor width, 6.5 lbs minimum monitor weight - 17.6 lbs max

MS Model -

• One fixed height arm stem, one dynamic motion arm link and one slider
  per monitor (see image below).
• Dynamic height adjustment: 4.5" - 26.5"
• 16.25" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
• 27" max monitor width, 4.4 lbs minimum monitor weight - 15.4 lbs max

FMS Model -

• One fixed height arm stem, 1 fixed height arm link, 1 motion arm link
  and 1 slider per monitor (see image below).
• Manual and Dynamic height adjustment: 4.5" - 26.5"
• 28.75" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
• 32" max monitor width, 4.4 lbs minimum monitor weight - 15.4 lbs max

Benefits:

• Easy lever height adjustment along pole
• Motion arm provides 12" of independent height adjustment
• 75mm & 100mm Quick Release VESA plate included
• Enclosed cable management feature included
• Desk Clamp or Grommet Mount available

Specifications:

• 180° lockout feature
• Desk Mount clamps to surfaces 1/2" to 1 7/8" thick
• Grommet Mount requires a hole diameter 5/16" - 2" wide, on surfaces up to 2.5" thick

Mfr Part #'s:

Fixed Arm + Fixed Arm - EVOLVE2-FF

Fixed Arm + Motion Arm - EVOLVE2-FM

Fixed Arm + Motion Arm + 28" Pole - EVOLVE228-FM

Fixed Arm + Slider - EVOLVE2-FS

Motion Arm + Slider - EVOLVE2-MS

Fixed Arm + Motion Arm + Slider - EVOLVE2-FMS
