Vanish Trackless Keyboard Tray System - Choose a Platform

  • $219.00
  • FREE SHIPPING
  • Ships within 1-3 business days

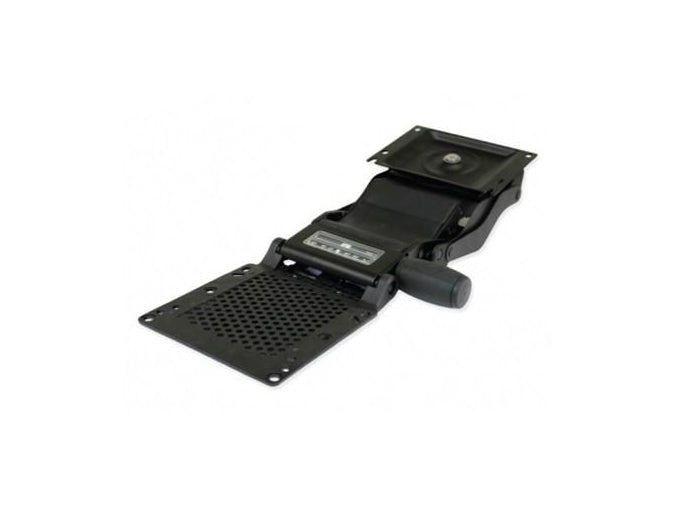

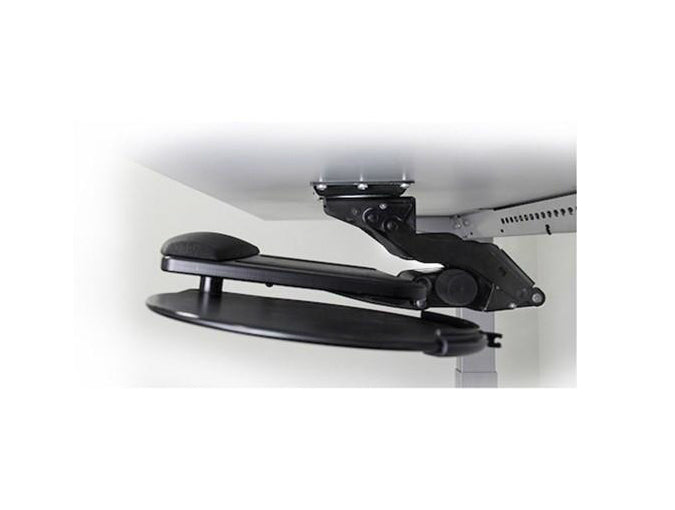

  • The Vanish trackless keyboard arm is engineered to fit work spaces such as height adjustable tables and benching systems, where space is limited and conventional track mounted keyboard arms will not fit.

    The Lift-n-Lock arm will adjust the height of the platform to any desired level between 1.25" above the underside of the desk to almost 7" below the underside of the desk.

    Most traditional keyboard systems require a track that is 17-21" long to fully retract, so if space is limited a trackless system like this one is recommended.

    This revolutionary new product still provides the user with Lift-N-Lock capability, dial tilt and separate height and tilt gauges and functionality that can only be found on high end keyboard arms.

    Vanish requires only 10" of depth to fully retract when not in use (from the front edge of your worksurface, back to obstruction). When fully retracted under the worksurface, the underside of the platform will sit 5.25" below the underside of the worksurface, and the front edge of the keyboard platform will slightly protrude from the front edge of the worksurface (depending on platform chosen - 10.5" deep platform protrudes 1".

    If you have less than 10" of depth, you can still utilize the Vanish Arm by installing it closer to the front edge of your worksurface than shown in the template provided. The platform will protrude further away from the front edge when fully extended, and would also protrude further out from the edge of the worksurface when fully retracted.

    If you have 13" of depth you may consider the Short Track keyboard tray system, which fully retracts on its 12.75" track.

    Optional Front Swivel Bracket available; mounts to the keyboard arm (in between the arm and the keyboard platform) to allow for dual swivel functionality. The keyboard platform will rotate 45° left or right while the arm remains stationary (see picture at bottom of page).

    Choose from six keyboard platforms to customize your own system (Simple Platform included in price, see all platforms below).

    Features & Benefits:

    • Direct Mount, no track required
    • Total height adjustment of 8.23” (+1.25” above to -6.98” below underside of desk)
    • Enhanced patented Lift-N-Lock braking mechanism
    • Soft touch knob dial tilt with +10° to -15° tilt angles
    • 360° of Swivel and separate height and tilt gauge
    • Easy height adjustment, providing superior lock up and stability with infinite adjustment
    • Exceeds HFES & BIFMA 5th percentile seated keyboarding hts. (HFES 22” BIFMA 22.6”)
    • Greater knee clearance under desking surface
    • Allows accurate, repeatable tray placement and side to side arm movement
    • Locks out positive tilt for specific ergonomic applications or users preference
    • Lifetime Warranty

    Platforms:

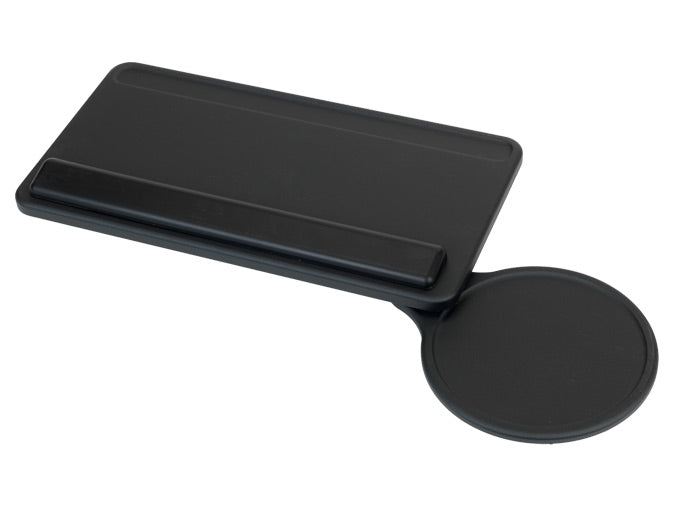

    Simple Platform-
    • Polymer wrapped MDF
    • Swivel mouse surface for easy adjustment
    • Mouse platform easily mounts right or left
    • Stick on firm foam palm rest
    • 19.75” x 10.5“, plus 9” diameter mouse surface

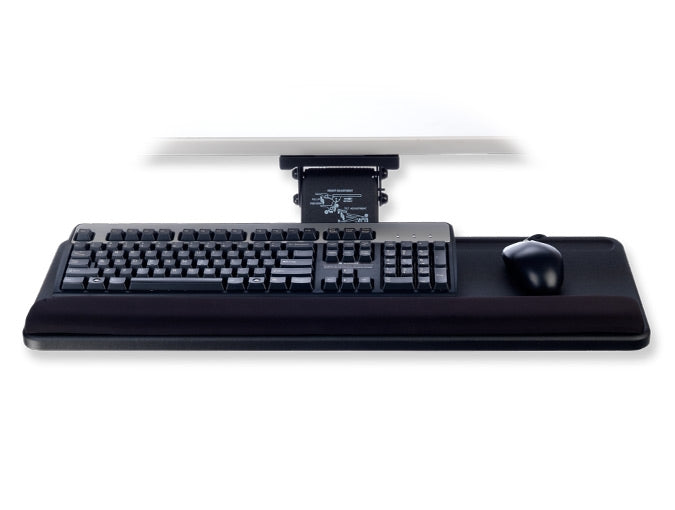

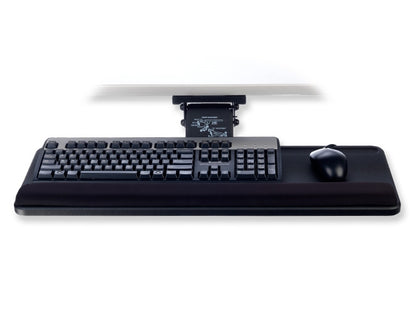

    Simple Extended Platform-
    • Polymer wrapped MDF extended tray allows for mouse or extra workspace
    • Foam palm rest (removable) for maximum ergonomic comfort
    • 27” w x 10.5” d

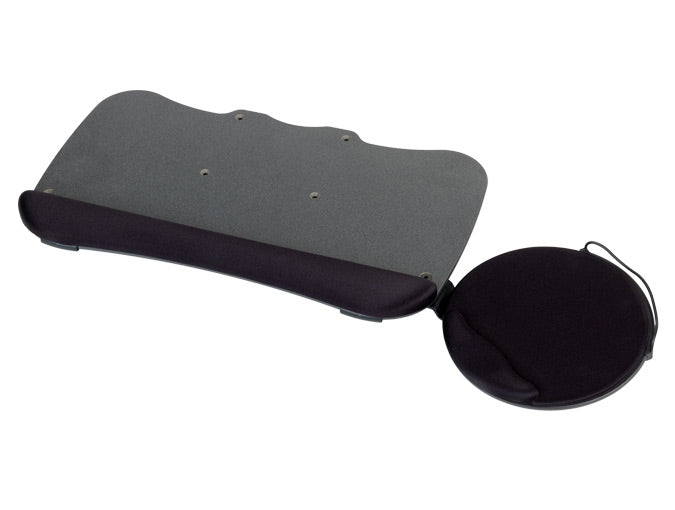

    Slimform Platform-
    • 1/4” thin phenolic allows complete knee clearance
    • Tilt & swivel mouse surface with gel pad provides infinite adjustment
    • Foam palm rest (removable) for maximum ergonomic comfort
    • Adjustable mouse catcher with cord manager
    • Mouse platform easily mounts right or left
    • 19.5“ x 11.5”, plus 8.25“ diameter mouse surface

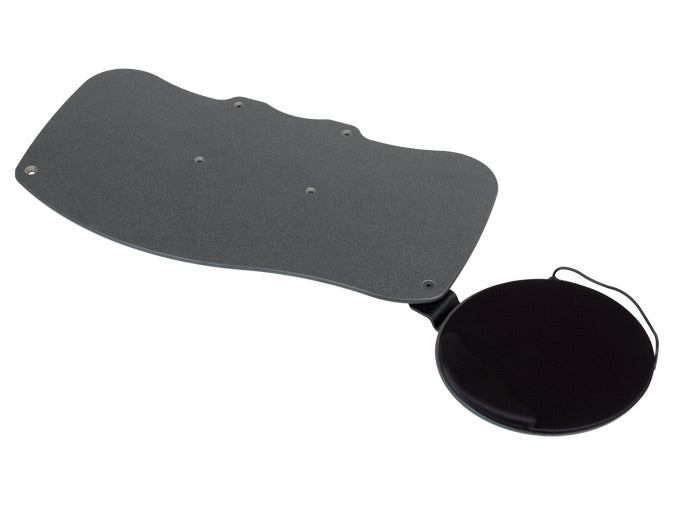

    Slimform Natural Platform-
    • Fits Mircosoft®, Natural™ & Sculpt™ keyboards
    • 1/4” thin phenolic allows complete knee clearance
    • Tilt & swivel mouse surface with gel pad provides infinite adjustment
    • Adjustable mouse catcher with cord manager
    • Mouse platform easily mounts right or left
    • 20.25“ x 10.625”, plus 8.25“ diameter mouse surface

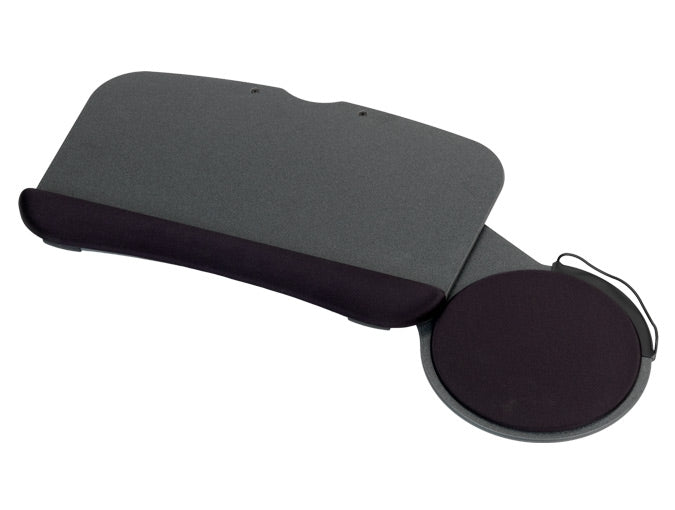

    Mouse Around Platform-
    • 1/4” thin phenolic allows complete knee clearance
    • Features both straight and curved sliding motion, combined in one tray
    • Unique mouse design smoothly slides right to left and also pulls forward
    • Foam palm rest (removable) for maximum ergonomic comfort
    • Gel mouse pad and adjustable mouse catcher with cord manager
    • Ideal for multiple-user workstations
    • 21” x 12”, plus 9” diameter mouse surface

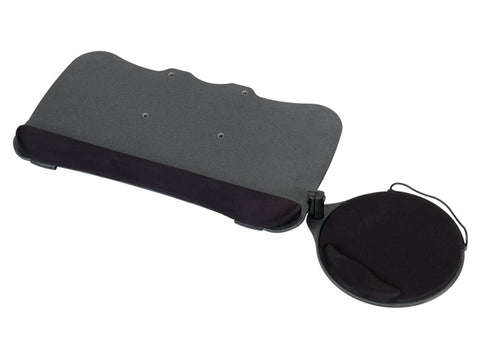

    OmniBoard-
    • 1/4” thin phenolic allows complete knee clearance
    • Mouse platform easily switches right to left and above or below tray
    • Gel palm rest (removable) for maximum ergonomic comfort
    • Gel mouse pad and adjustable mouse catcher with cord manager
    • Ideal for multiple-user workstations
    • 19.5” x 11.5”, plus 8.25” diameter mouse surface

    Front Swivel Bracket

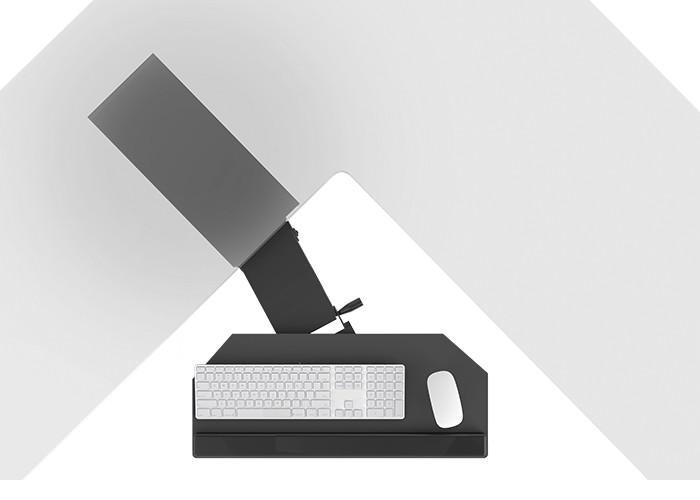

    The optional front swivel bracket allows for independent platform swivel functionality, and also for lateral platform movement. Perfect for difficult 90° corner installations, mount system on either side of corner and swivel platform into corner with ease. See use and installation video below.
