ESI Ergonomics

Evolve Pole-Mounted Dual Monitor Arm Series

Evolve Pole-Mounted Dual Monitor Arm Series

Regular price $462.60
Regular price Sale price $462.60
Sale Sold out
Ships within 1-3 business days

Customizations Total: $0.00

The Evolve Pole-Mounted Dual Monitor Arms provide extremely versatile adjustability in a sleek and slim package. Featuring quick and secure height adjustment along the length of the pole as well as a variety of fixed arm, motion arm and slider arm configurations that adjust up and down. Slider allows for easy side-by-side alignment of varying sized monitors. Available in silver, white or black.

Evolve Pole-Mounted Dual Monitor Arms present a slim profile when in the folded position, making this monitor arm a perfect match for users with limited available work surface depth. Cables can be routed inside internal pathways along the underside of the arm for a clutter-free work area. Gas spring technology provides smooth height adjustability.

16" Pole standard, 28" Pole available with FM model.

Available Models:

Base FF Model -

  • One fixed height arm stem and two fixed height arm links per monitor (see image below).
  • Manual height adjustment: 13.5" - 25.25"
  • 26.75" horizontal extension, +25°/-90° tilt, +90°/-90&deg rotation
  • 27" max monitor width, 20 lbs max monitor weight per arm

FS Model -

  • One fixed height arm stem, one fixed height arm link and one slider
    per monitor (see image below).
  • Manual height adjustment: 12" - 23.25"
  • 16.25" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
  • 27" max monitor width, 20 lbs max monitor weight per arm

FM Model -

  • One fixed height arm stem, one fixed height arm link and one dynamic motion arm link per monitor (see image below).
  • Manual and Dynamic height adjustment: 4.5" - 26.5"
  • Optional 28" pole for 38" height adjustment available
  • 26.75" horizontal extension, +25°/-90° tilt, +90°/-90&deg rotation
  • 27" max monitor width, 6.5 lbs minimum monitor weight - 17.6 lbs max

MS Model -

  • One fixed height arm stem, one dynamic motion arm link and one slider
    per monitor (see image below).
  • Dynamic height adjustment: 4.5" - 26.5"
  • 16.25" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
  • 27" max monitor width, 4.4 lbs minimum monitor weight - 15.4 lbs max

FMS Model -

  • One fixed height arm stem, 1 fixed height arm link, 1 motion arm link
    and 1 slider per monitor (see image below).
  • Manual and Dynamic height adjustment: 4.5" - 26.5"
  • 28.75" horizontal extension, +60°/-80° tilt, +90°/-90&deg rotation
  • 32" max monitor width, 4.4 lbs minimum monitor weight - 15.4 lbs max



    Benefits:

    • Easy lever height adjustment along pole
    • Motion arm provides 12" of independent height adjustment
    • 75mm & 100mm Quick Release VESA plate included
    • Enclosed cable management feature included
    • Desk Clamp or Grommet Mount available

    Specifications:

    • 180° lockout feature
    • Desk Mount clamps to surfaces 1/2" to 1 7/8" thick
    • Grommet Mount requires a hole diameter 5/16" - 2" wide, on surfaces up to 2.5" thick

    Mfr Part #'s:

    Fixed Arm + Fixed Arm - EVOLVE2-FF

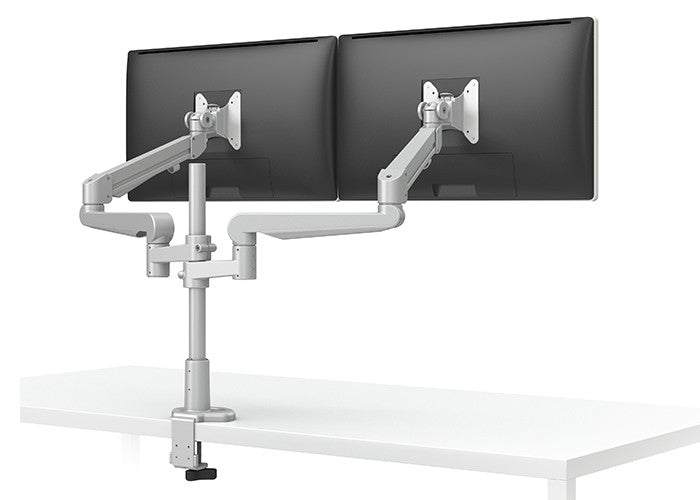

    Fixed Arm + Motion Arm - EVOLVE2-FM

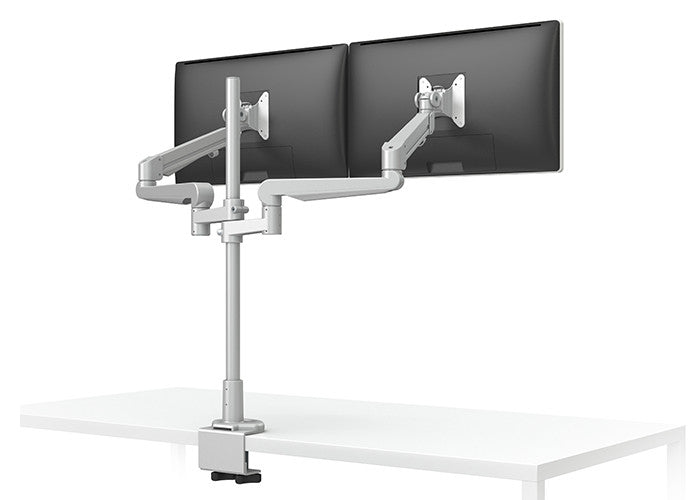

    Fixed Arm + Motion Arm + 28" Pole - EVOLVE228-FM

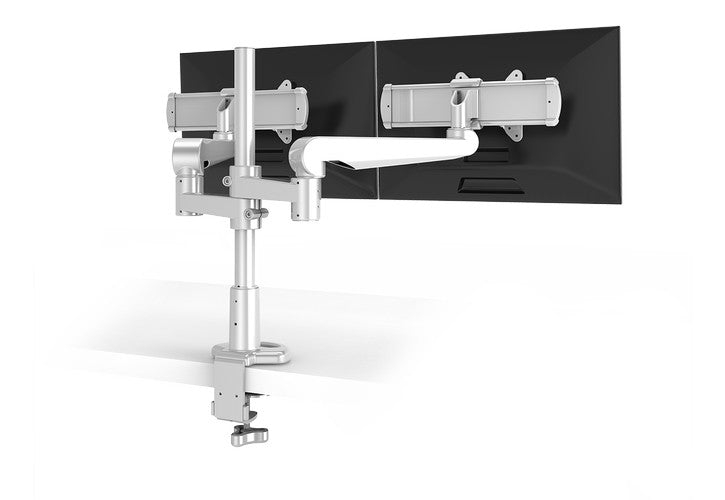

    Fixed Arm + Slider - EVOLVE2-FS

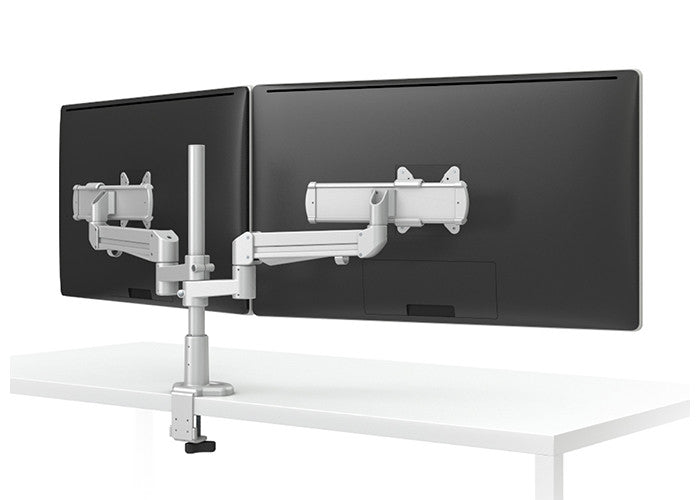

    Motion Arm + Slider - EVOLVE2-MS

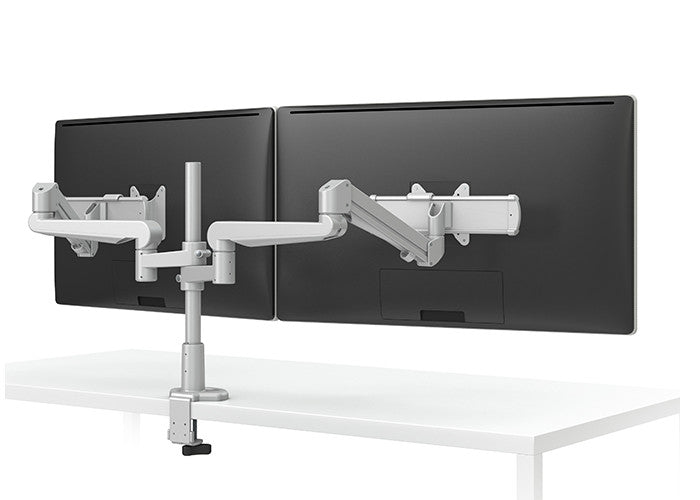

    Fixed Arm + Motion Arm + Slider - EVOLVE2-FMS
