ESI Trada Electric Height Adjustable Desk

  • $763.20
  • FREE SHIPPING
  • Ships within 3-5 business days

  • Customizations Total: $0.00

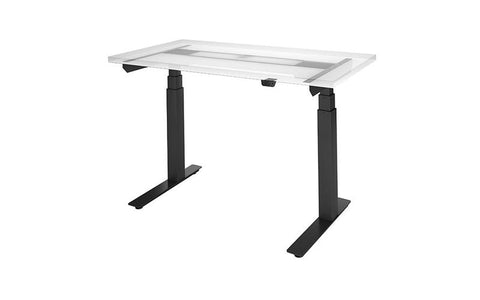

    The Trada, 3 stage, electric height adjustable base provides adjustability for at least 98% of your population while sitting and standing. Trada offers simple and flexible height adjustment for any workstation and is built to last with its 7 year warranty on the electric motors and 15 year warranty on all other components.

    The Trada base comes in silver, black or white, and you can select from a range of top sizes and finishes for a custom look.

    The quiet, smooth-operating Trada comes with a standard Soft start/stop control, or with the optional 4-position digital memory control, so you can adjust to pre-set heights at the touch of a button. With a range of 22.6 to 48.7 inches, Trada will fit most everyone's needs.

    Features & Benefits:

    • Three stage adjustable “C” legs in two motors with 265 lbs. lifting capacity
    • 25.5” height adjustment range: from 24.5” - 50.0” (excluding worksurface)

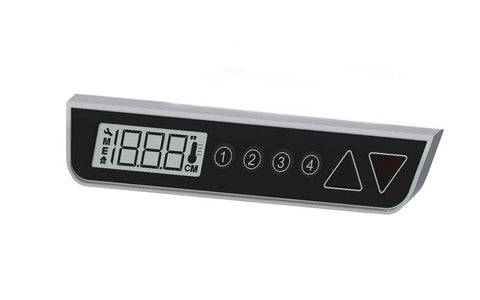

    • Soft start and stop switch standard or Programmable switch (optional)
    • Adjustable width frame accommodates worksurfaces 48.0”–72.0”
    • Anti-collision feature

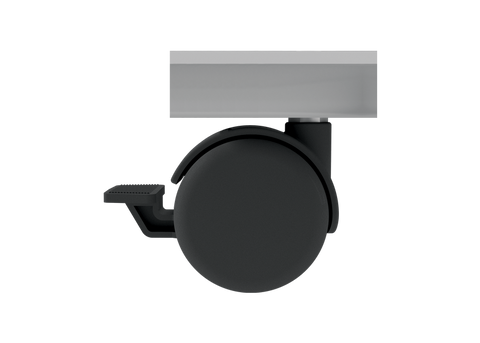

    • Locking casters available (optional) (increases desk height by 2")
    • Low standby power consumption
    • Optional Flexcharge power center

    Specifications:

    • 1.5” per second adjustment speed
    • ADA compliant
    • 9’ power cord
    • Steel frame and foot construction
    • Meets or exceeds BIFMA x5.5, and CSA C22.2 68 guidelines
    • Warranty: 15 yrs (structural) / 7 yrs (mechanical)

    Dimensional Illustrations

    Assembly Instructions

    Warranty:
    Electrical components (control boxes, hand switches, motors) are 7 years, structural components (J channels, feet and top supports) are 15 years

    Note: Top stiffeners are not needed with Trada because the super sturdy frame fully supports any surface up to 72".

    Work Surfaces:

    There are a variety of top work surfaces and finishes to choose from. Tops available in 24" - 30" depths and 48" - 72" widths.

    • Thermally Fused Melamine: 1.125"  (3-5 day lead time)
    • High Pressure Laminate: 1.125"  (2-4 week lead time)

    Thermally Fused Laminate (TFL) Worksurfaces consist of a single printed decor paper fused directly by heat and pressure to the core material of MDF or particle board. Benefits: Cost efficient, consistent and uniform, water resistant, scratch resistant. Quick ship.

    High Pressure Laminates (HPL) Worksurfaces consist of a melamine treated printed decor paper fused to multiple sheets of kraft paper. Heat and pressure bond all the sheets together creating a flexible and durable piece of plastic type material which is then adhered to MDF or particle board. Benefits: Durable, versatile, stylish, heat resistant, water resistant, scratch resistant, impact resistant, hygienic qualities.

    Thermally Fused Melamine Finishes: (hover over image, click to enlarge)

    White Contour White Folkstone Grey Black

    Brazilian Walnut Walnut Amati Ankara Cherry Cabinet Maple

    Sandalwood Driftwood Queenston Oak Libretti

    HPL Solid Finishes (hover over image, click to enlarge):

    Designer White Linen Antique White Grey Platinum
    Khaki Brown Shadow Slate Grey Black

    HPL Woodgrain / Pattern Finishes (hover over image, click to enlarge):

    Manitoba Maple Beigewood Brazilwood Hibiscus Cherry Pinnacle Walnut

    NOTE: Actual top surface dimensions are less than the industry standards mentioned above. Subtract 2" from width and 1" from the depth of the dimensions shown in the menu above. For example, the 48"W x 30"D work surface measures exactly 46"W x 29"D.

    Grommets (Available on TFM Tops Only):

    All grommet holes are made on the non-user side of the desk top. Grommet locations are from user's side point of view. Available in Black or White.

    Accessories:

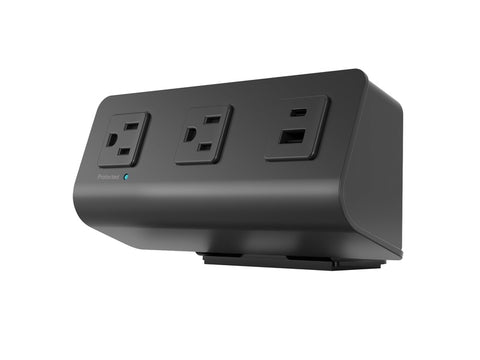

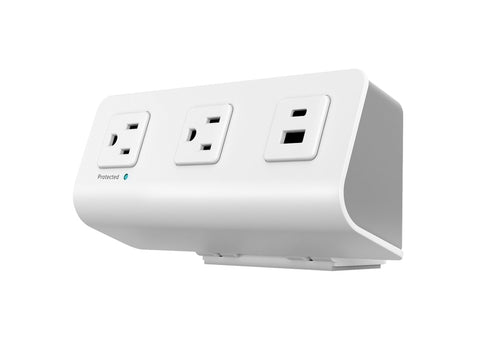

    Flexcharge4C Power - Two AC outlets: 15A, 125V, 60Hz, One quick-charge USB-A port: 3.1A, 5V One quick-charge USB-C port: 3.1A, 5V (device dependent)

    Universal mounting bracket that allows for a desk clamp, 2.0” grommet, or under worksurface mount. Meets spill-protection criteria. UL and cUL listed. 8.0′ power cord. Indicator light illuminates when built-in surge protection is active. Available in black and white.

    Avoid standing discomfort! Use the SmartMat Slidable Anti-Fatigue Mat and seamlessly switch from standing to sitting by activating the foot control and sliding it out of the way without bending down and picking up the mat.
